NE1115EL
Soft Serve Ice Cream Machine Tabletop, Bottom-Up-Tech™
NE1115EL
Standard: Pre-Cooling, Gear Pump, Mixture Agitator, Stainless Steel Handle, Automatic Rebound Valve Body, Stainless Steel Shell

Option: Refrigerant (R448A)

Contact us for more questions.

FEATURES

  • Quick Freezing and Big Output
    With a new revolutionary TITAN. freezing cylinder and the brilliant 1.5HP Embraco compressor , the first dispense requires only 8 - 10 minutes and 30 portions (60g/portion) can be dispensed continuously.

  • touchscreen

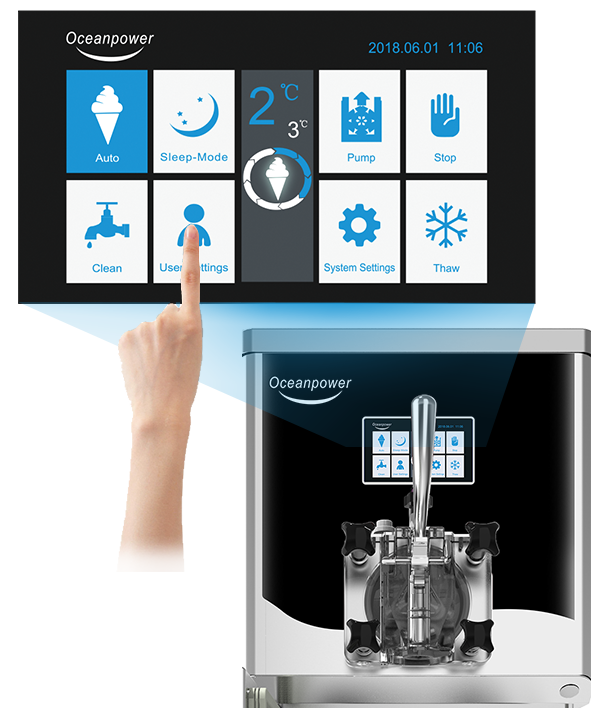

    Intelligent Control System A.A.T.I.S .
    A.A.T.I.S is an user-friendly control system, it will monitor overall machine performance and log unexpected deviations for easy maintenance.
    Enable custom setting such as product viscosity, freezing temperature and product counts for smart business owners.

  • quiet

    Quiet Inventer Techology
    Smooth start-up and reboot, quiet operation; prolonged machine life.
    Operation noise between 60 - 70 decibel.

FUNCTION ILLUSTRATION

  • 1

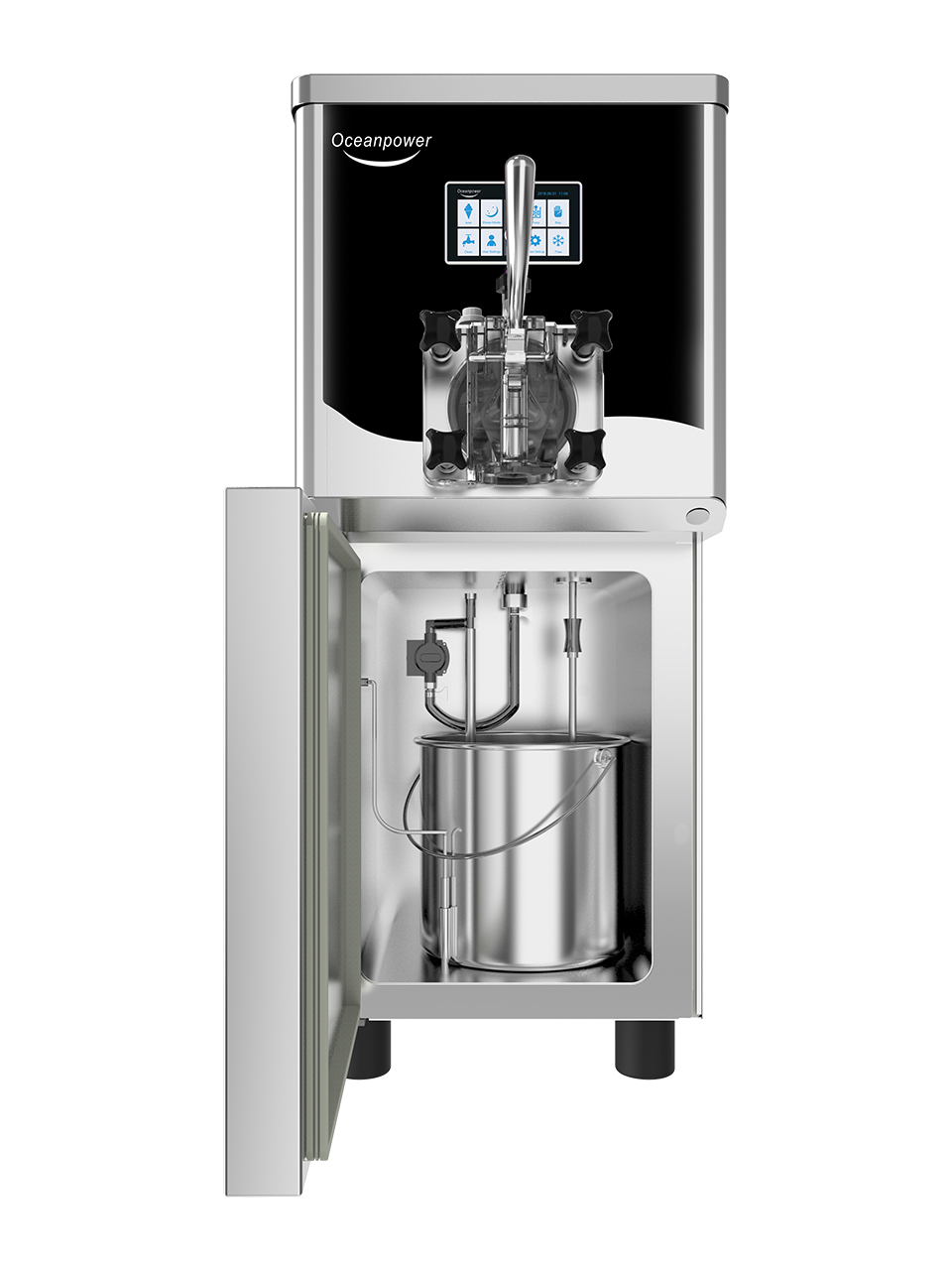

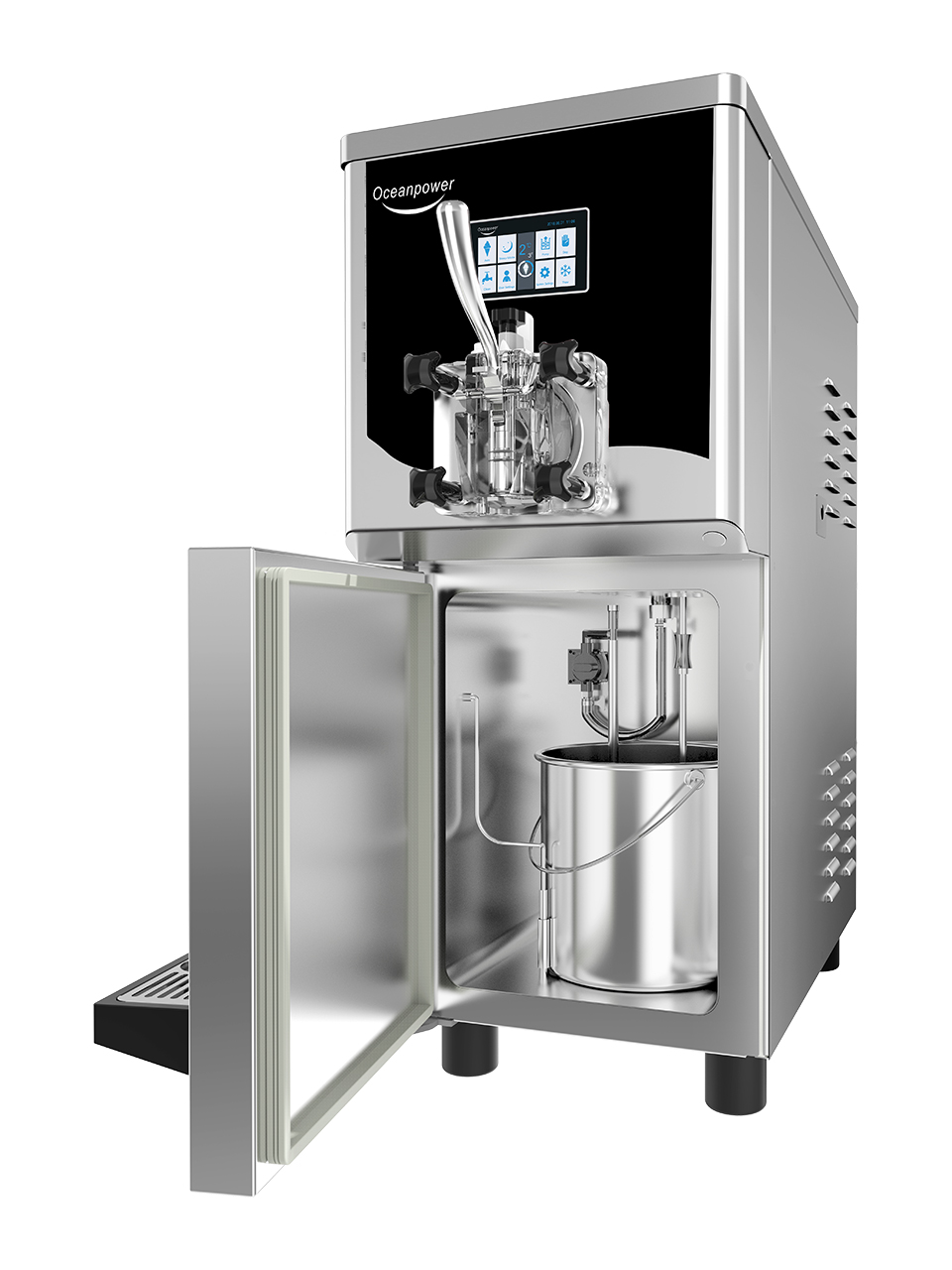

    Bottom-Up-Tech™

    The independent pre-cooling chamber beneath will keep your mixture chill and fresh.

    Automatic mixture agitation will ensure you products' consistency before freezing.

    The adjustable imported Italy gear pump will produce a stable ice-cream overrun between 30% - 60%.

  • 2
    Thawing Function

    NE1115EL are equipped with a thawing function, which can heat the cylinder to cut the cleaning time by HALF. Also, will heat-up the cylinder in the unlikely event of a cylinder froze.

  • 3

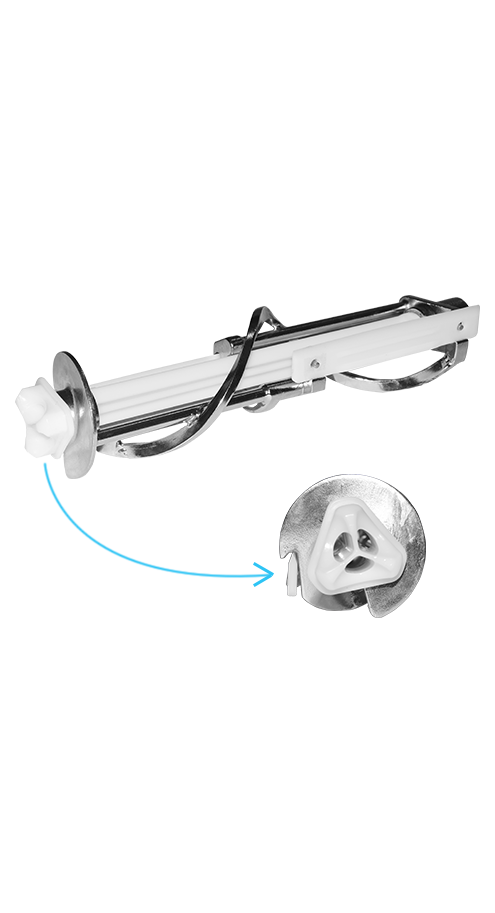

    New Stainless Steel Beater with Retract Action

    The newly added retract action will create a full cycle of mixture movement inside the cylinder, this will ensure optimal ice-cream consistency and minimize waste.

  • 4
    New Vertical Ventilation System

    Ensure maximum space utilization and machine performance.

SPECIFICATIONS

Technical Data

Model

NE1115EL

Flavors

Single

Mix Hopper
8L*1

Capacity

30L/H

Power

1900W

Voltage

220V 50/60HZ

Compressor

1.5HP

Cylinder

1*2.5L

Standard
Pre-Cooling, Gear Pump, Mixture Agitator,
Stainless Steel Handle, Automatic Rebound Valve
Body, Stainless Steel Shell

Exhaust Direction

Vertical

Cooling

Air Cooled

Refrigerant

R404A (Standard) / R448A (Option)

Overrun
30%-60%
Net Weight / Total Weigh
121 / 156Kg
Dimension
810*380*920mm

These specifications are subject to change without notice as further research and development efforts continuously improve the model.
