NE2430L

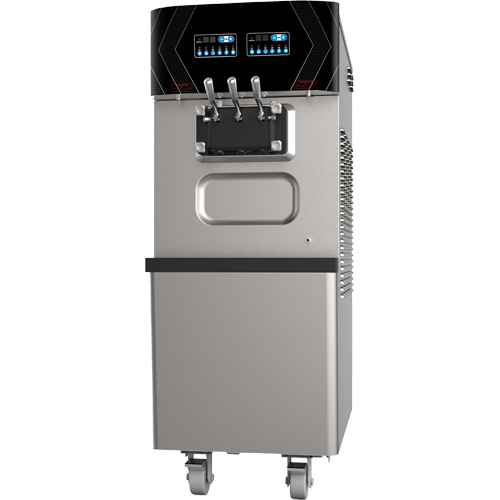

Soft Serve Ice Cream Machine Dual Control Twin Twist
NE2430L
Standard:  Pre-Cooling, Mixture Agitator, Stainless Steel Handle, Automatic Rebound Valve Body, Stainless Steel Shell

Options: Air Pump

Contact us for more questions.

FEATURES

  • Air cooled
    Minimum Clearance should be 300mm on left,right, and 400mm rear for assuring adequate air flow

  • Electrical
    One dedicated electrical connection is required. Check with local electrician for cord and receptacle specifications if 50 Hz or 60 Hz Equipment is desired

  • Customization
    Product customization may be available upon request

FUNCTION ILLUSTRATION

  • 1
    Dual Control System

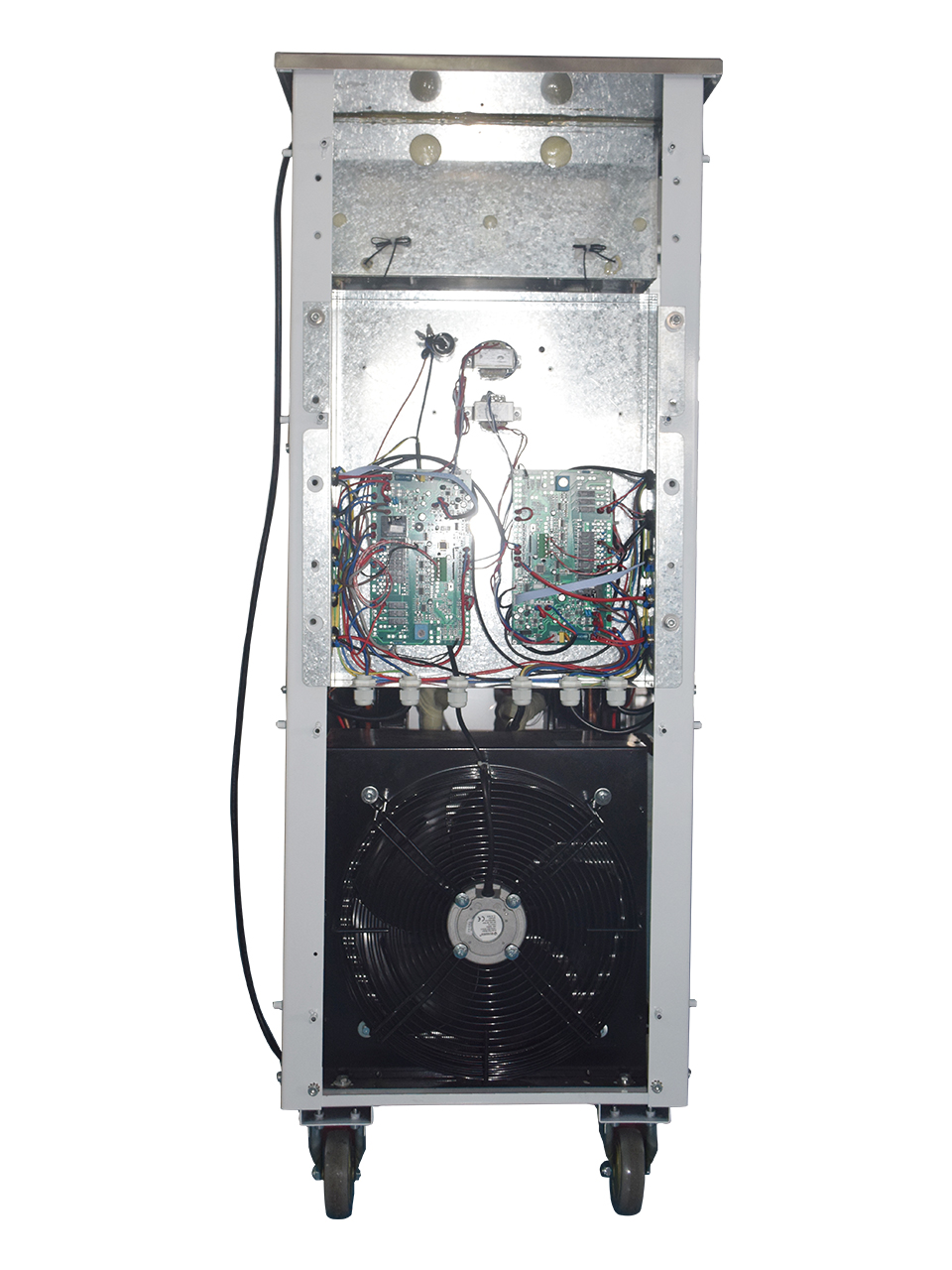

    NE Series can be turned off separately, Two microprocessor controls separate control of each flavor and both sides can work separately. Siemens touch screen with displaying operating.

  • 2
    Stainless Steel Handle

    Strong stainless steel handle with Rebound pistons, Rebound pistons— control ice cream making speed Automatic handles homing—press the handles and auto return back.

  • 3

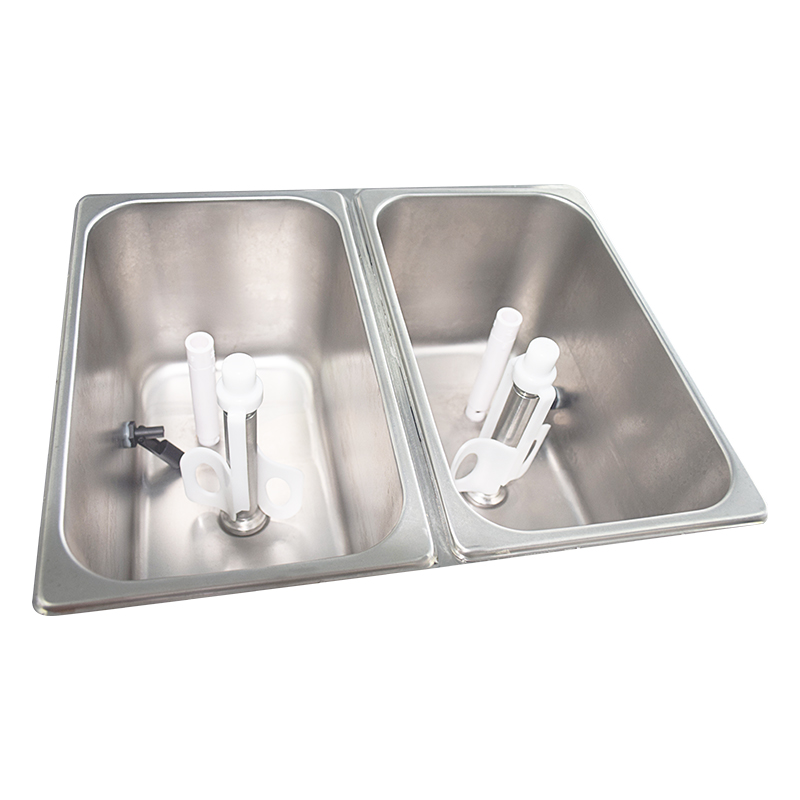

    Mixture Agitator

    Make the temperature of the mixture more uniform and have better liquidity. When the mix level is low, the Mix Low light will turn on to remind operator to add mix.

  • 4
    Optimized Gear Reducer

    Optimized gear reducer designs ensure ice cream taste and lower maintance cost.

  • 5
    Silent Frequency Conversion Technology

    Operation noise between 60-70 decibel

SPECIFICATIONS

Technical Data

Model

NE2430L

Flavors

2+1 mixed

Production Capacity

65L/H

Mix Hopper

2*12L

Cylinder

2*2L

Power

4400W

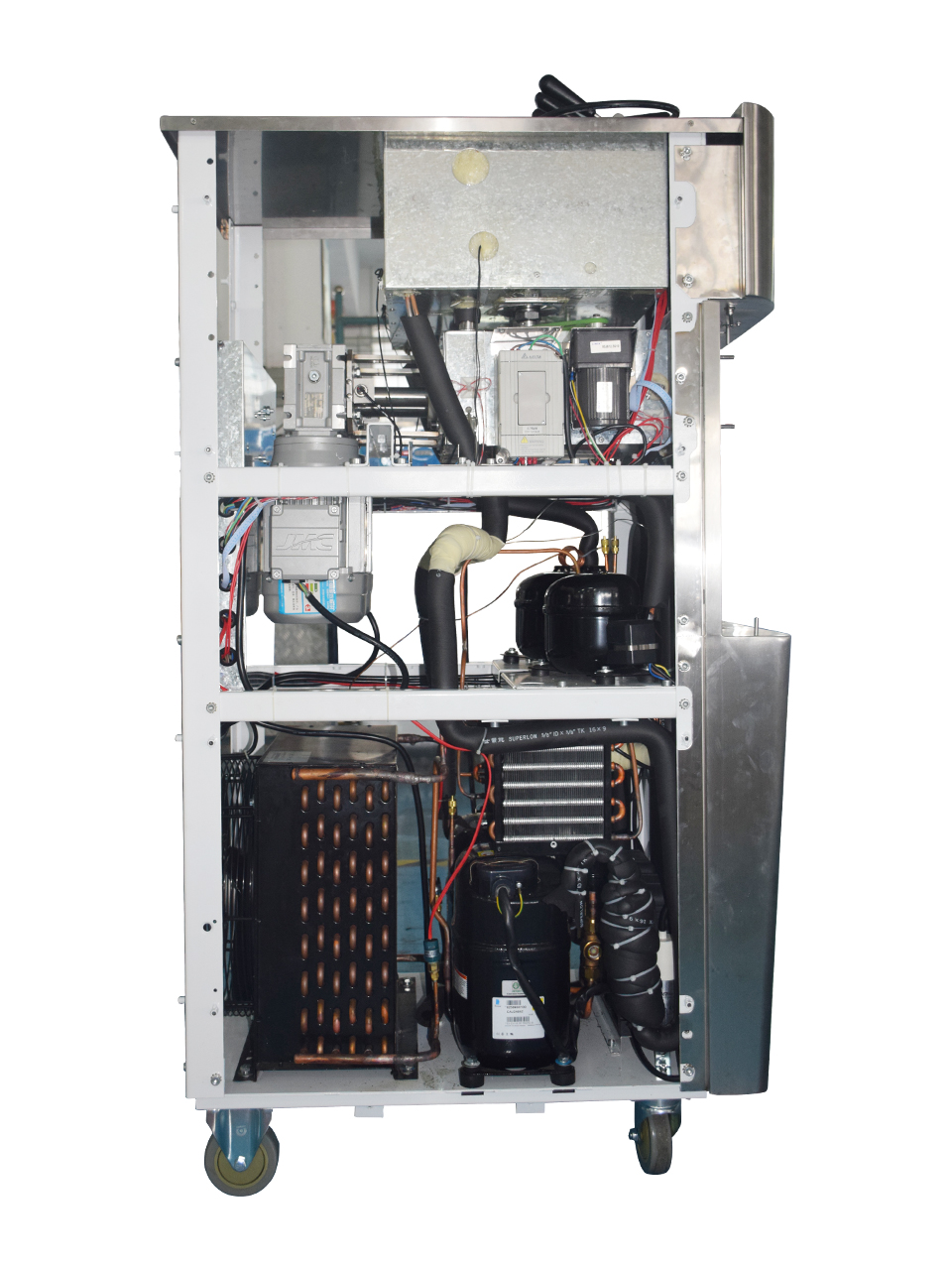

Main Compressor

1.5HP/1.25HP *2(Dual Control)

Standard
Pre-Cooling, Mixture Agitator, Stainless Steel Handle,
Automatic Rebound Valve Body, Stainless Steel Shell
Option Air Pump

Cooling System

Air Cooled

Refrigerant

R404A (Standard) / R448A (Option)

Voltage

220V 50Hz / 60Hz
Net Weight / Total Weight(kg)
229 / 277 Kg
Dimension(mm)
540*831*1470

These specifications are subject to change without notice as further research and development efforts continuously improve the model.
