Air cooled
Minimum Clearance should be 300mm on left,right, and rear for assuring adequate air flow
Electrical
One dedicated electrical connection is required. Check with local electrician for cord and receptacle specifications if 50 Hz or 60 Hz Equipment is desired
Customization
Product customization may be available upon request
A new advanced system enables the operation easier . Be equiped with automatic, cleaning, sleep and other basic operating functions and a variety of alarm prompts. Rebound pistons—control ice cream making speed Automatic handles homing—press the handles and auto return back.

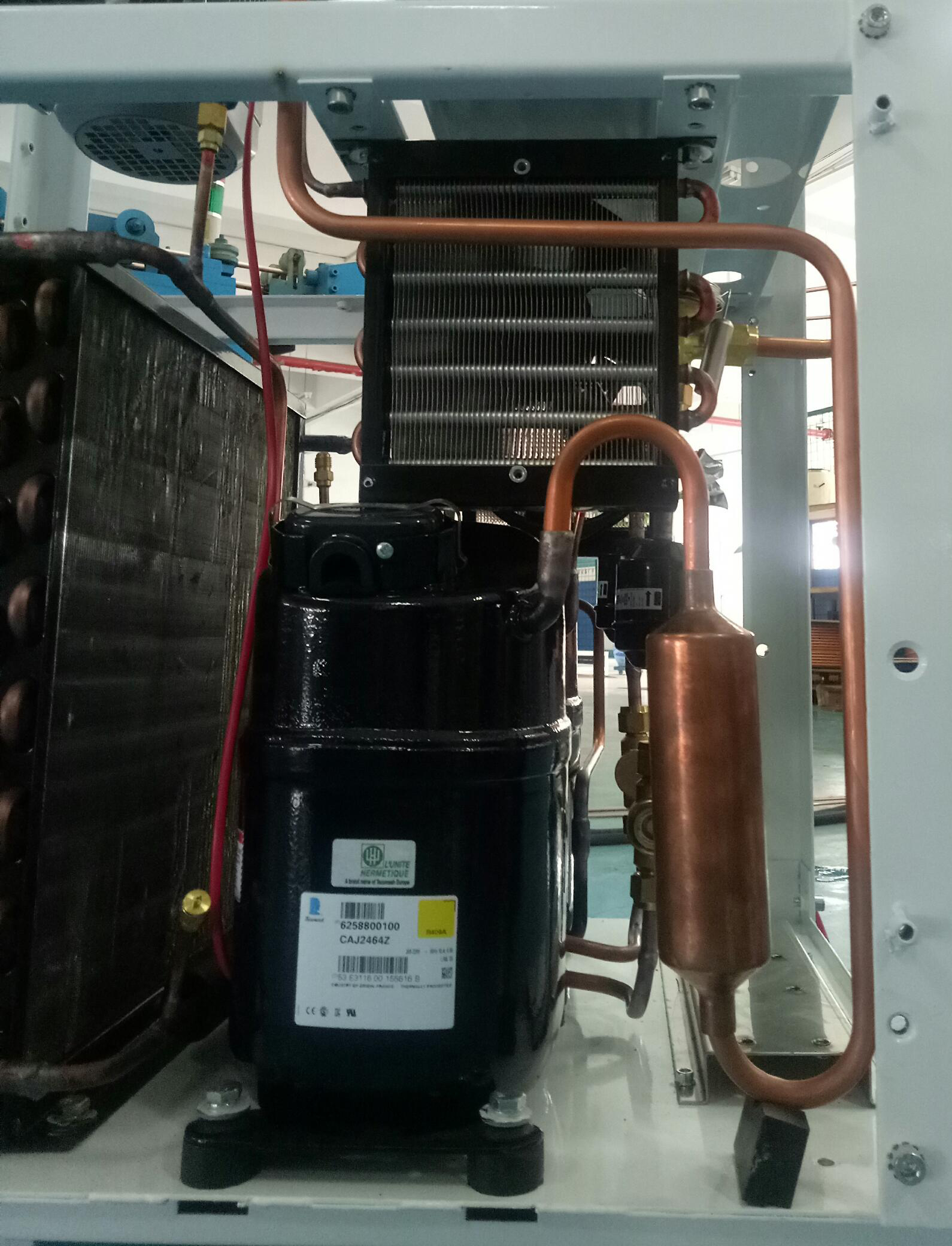

Insulated the heat and trapped the chill, improve efficiency Full & thicker foaming evaporator to ensure perfect refrigeration efficiency.

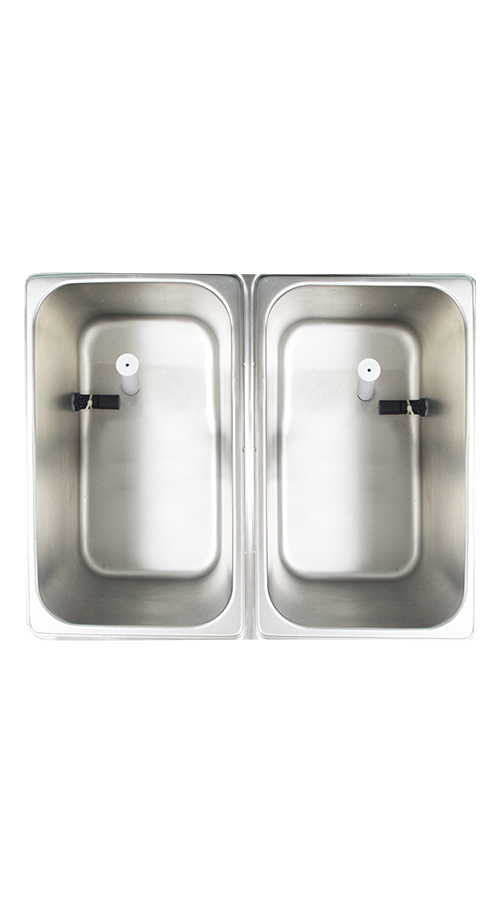

The low liquid alarm will sound when the hopper is lack of ice cream mix.
The number of ice creams dispensed is displayed on the front panel each time the discharge handle is pressed.
The machine automatically enters standby mode after two hours of inactivity and will resumes normal operation after any keys or handles are pressed.
The ice cream machine can apply to broad voltage range from 198V to 238V.
|
Model |
OP138 |
|
Flavors |
2+1 mixed |
|
Production Capacity |
38L/H |
|
Mix Hopper |
2*6.5L |
| Cylinder |
2*2L |
|
Power |
2500W |
|
Main Compressor |
1.25HP |
|
Cooling System |
Air Cooled |
|
Refrigerant |
R404A(Standard) / R448A(Option)
|
|
Options |
Pre-Cooling / Air Pump / Gear Pump / Stainless
Steel Shell / Mixture Agitator /Stainless Steel
Handle / Automatic Rebound Valve Body
|
|
Voltage |
220V 50Hz/60Hz |
|
Net Weight /Total Weight(kg) |
166 / 189.5kg |
|
Dimension |
555*735*1335mm |
