OPH42

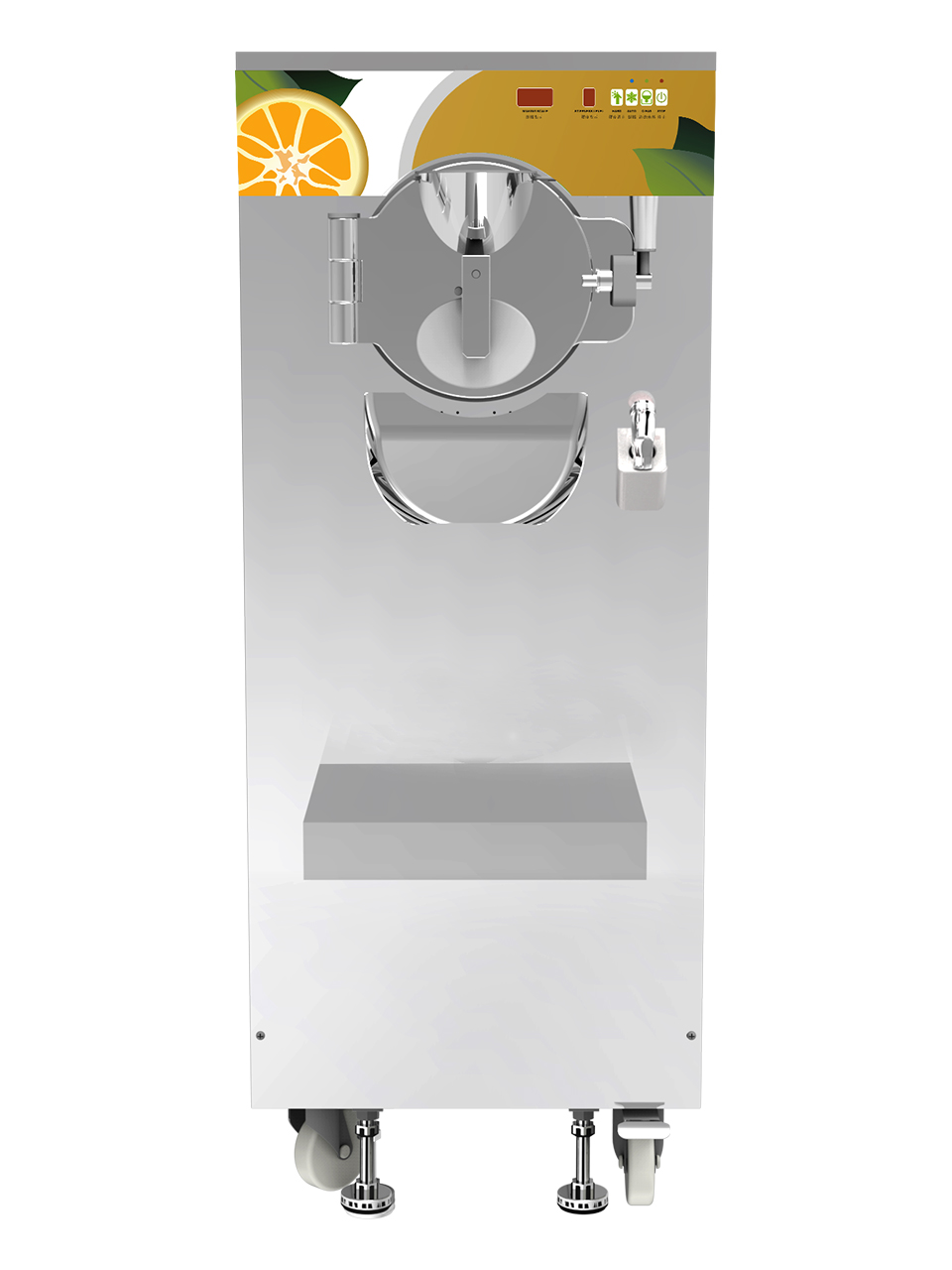

Floor Standing Batch Freezer Gelato Machines —Ideal electronic batch freezers for any ice cream manufacturer
OPH42
sturdy and tireless, easy to use for producing vast aray of different ice cream from dairy to fruit, sorbets and cremoladas or yoghurt.
Contact us for more questions.
Certification:
cb Certification ce Certificationrohs Certification

FEATURES

  • Air cooled
    Minimum Clearance should be 300mm on left,right, and rear for assuring adequate air flow

  • Electrical
    One dedicated electrical connection is required. Check with local electrician for cord and receptacle specifications if 50 Hz or 60 Hz Equipment is desired

  • Customization
    Product customization may be available upon request

FUNCTION ILLUSTRATION

  • 1
    Microprocessor Regulation:

    Regulates the entire refrigeration process and maintains consistent product viscosity, adjustable through modifying viscosity between level 1 and level 5 on the front panel, thereby allowing users to fine-tune optimal serving temperature and viscosity.

  • 2
    Safety Protection:

    Shuts down for self protection when motor overload or compressor overheat occurs due to power surge or abnormal voltage from power supply.

  • 3
    Easy Cleaning:

    Water nozzle available on the front panel for easy cleaning of machine surface.

  • 4
    Adjustable Discharge Speed:

    Product discharge speed can be manipulated through adjusting parameters of the phase converter(Only for 60Hz).

SPECIFICATIONS

Technical Data

Model

OPH42

Production Capacity

42L/H

Cylinder

8L

Power

2500W

Main Compressor


1.5HP(Standard) / 2HP(Option)


Cooling System

Air Cooled

Refrigerant

R404A (Standard) / R448A (Option)

Voltage
220V 50Hz/60Hz, 380V 50Hz
Net Weight(kg)
171kg
Total Weight(kg)
215kg
Dimension(mm)
520*830*1310mm

These specifications are subject to change without notice as further research and development efforts continuously improve the model.
