Water cooled
Minimum Clearance should be 300mm on left,right, and rear for assuring adequate air flow
Electrical
One dedicated electrical connection is required. Check with local electrician for cord and receptacle specifications if 50 Hz or 60 Hz Equipment is desired
Customization
Product customization may be available upon request

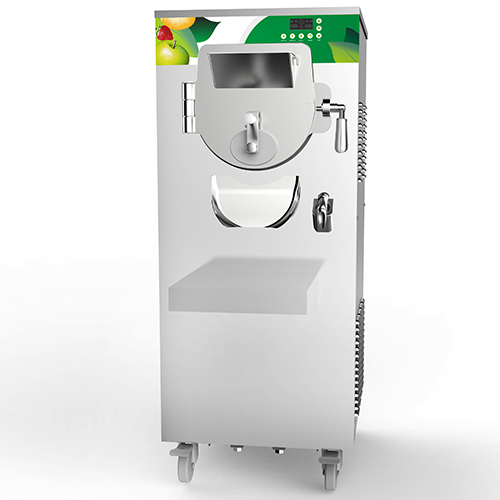

There are two control system modes to be flexibly selected, timing control adn temperature control. Equipped with new intelligent HY-C system, multiple protections from temperature, pressure, etc. and double speeds operation can guarantee an uniform taste and quality of ice cream in different stores and at different time.
Strong stainless steel dasher with floated blade cutter results in perfect fit with cylinder wall, make it more efficient in freezing and improve the smoothness of the finished product.
Variable frequency drive, operating silently and stably. Increased power and transmission system make it more power, operating smoother and longer service life.
Increase a heat exchange gas-liquid separator to increase the refrigeration efficiency. Water pressure adjustment valve can automaticly adjust water intake to ensure more water-saving when it refrigerate at the same time.
Upgrade cylinder is optional which could shorten the cooling time at least 30%.
|
Model |
OPH76 plus |
|
Production Capacity |
30-50L/H |
|
Cylinder |
16L |
|
Power |
3800W |
|
Main Compressor |
3HP
|
|
Cooling System |
Water-Cooled(standard)/Air Cooled(Option) |
|
Refrigerant |
R404A (Standard) / R448A (Option) |
|
Voltage |
220V 50Hz/60Hz, 380V 50Hz |
|
Net Weight(kg) |
235kg |
|
Total Weight(kg) |
270kg |
|
Dimension(mm) |
800*580*1370mm |
